Product Description
Map Tray Sealer is widely applicable to the package of raw and cooked meat seafood, dairy product, fruit and vegetable, rice and flour food. Modified atmosphere packaging machine features quality assurance, keeping fresh color retention,complexion preservation and taste retention.
Technical Characters
1.Programmable control system.
2.Touch screen control panel.
3.304 stainless steel main construction.
4.Fault real time prompting function.
5.Mould is available to be changed and customized mould is acceptable.
Technical Specifications
Model | SKD-L4-E(440) |
Max Tray Dimensions(mm) | 260x180x60(x4) |
Max Width of Film(mm) | 470 |
Max Diameter of Film(mm) | 260 |
Packing Speed(times/min) | 3~4 |
Gas Exchange Rate(%) | ≥99 |
| Vacuum Pump Capacity(m³/h) | - |
| Electrical Requirement(v/hz) | 380/50/60 |
| Consume Power(kw) | 2.8 |
| Working Pressure(Mpa) | 0.6~0.8 |
| Machine Weight(kg) | 260 |
| Machine Dimensions(mm) | 1148x1170x1478 |
| Packaging weight(kg) | 326 |
| Packaging size(mm) | 1192x1240x1665 |

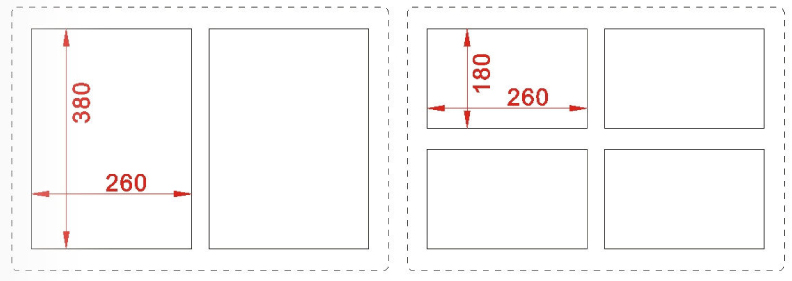

440Max. Mould(Die Plate) Format(mm)
