Product Description

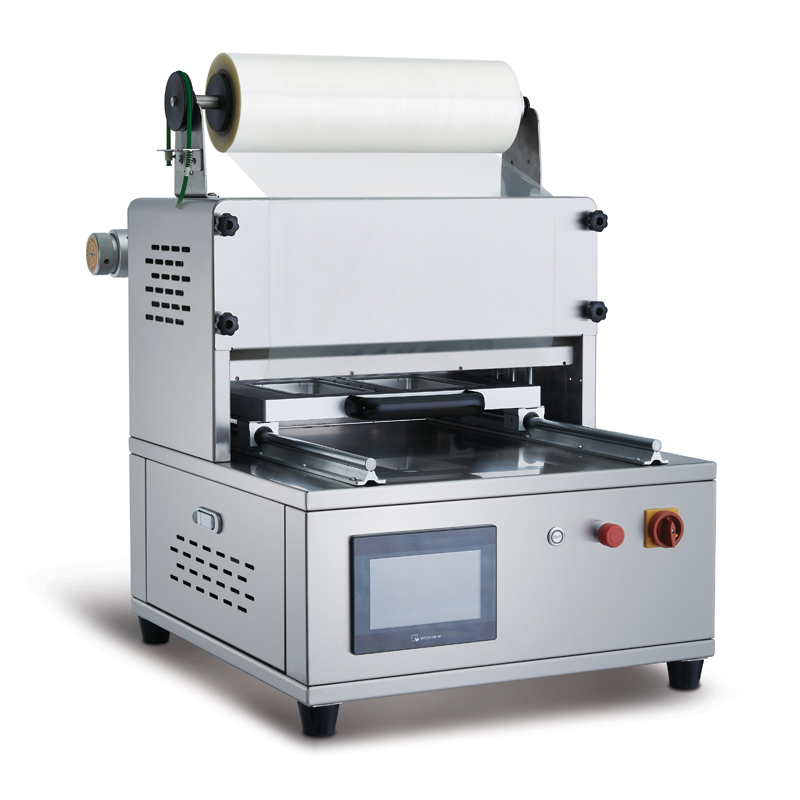

SKD-TD2-E Map Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. This is an economical and affordable small MAP machine with simple structure and stable performance. Especially suitable for stores and small food processing plants.
Technical Characters
1.Programmable control system.
2.Touch screen control panel.
3.304 stainless steel main construction.
4.Electric drive, no air compressor required.
5.Mould is available to be changed and customized mould is acceptable.
Technical Specifications
Model | SKD-TD2-E(450) |
Max Tray Dimensions(mm) | 230x178x70(x2) |
Max Width of Film(mm) | 440 |
Max Diameter of Film(mm) | 220 |
Packing Speed(times/min) | 3~4 |
Gas Exchange Rate(%) | ≥99 |
| Electrical Requirement(v/hz) | 220/50/60 |
| Consume Power(kw) | 1.8 |
| Machine Weight(kg) | 100 |
| Machine Dimensions(mm) | 874x703x820 |
| Packaging weight(kg) | 135 |
| Packaging size(mm) | 950x790x920 |

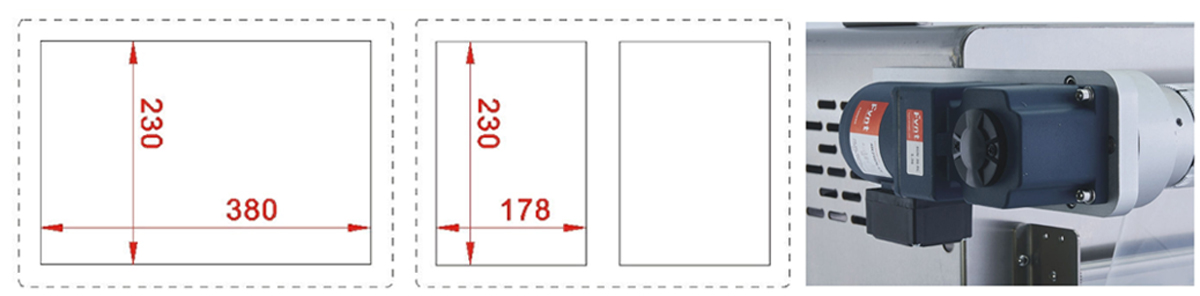

Max. Mould(Die Plate) Format(mm)
